Engineered in Korea. Built for your vehicle.
The only 60fps LVDS digital rearview mirror designed specifically for your car. Factory fit. Flawless signal. No compromises.
Select your vehicle — we'll show you exactly what fits.
We're constantly expanding compatibility. Join the waitlist and we'll notify you when your vehicle is added.
Join Waitlist →All models share the same vehicle-specific OEM fit. Choose the feature set that matches how you drive.

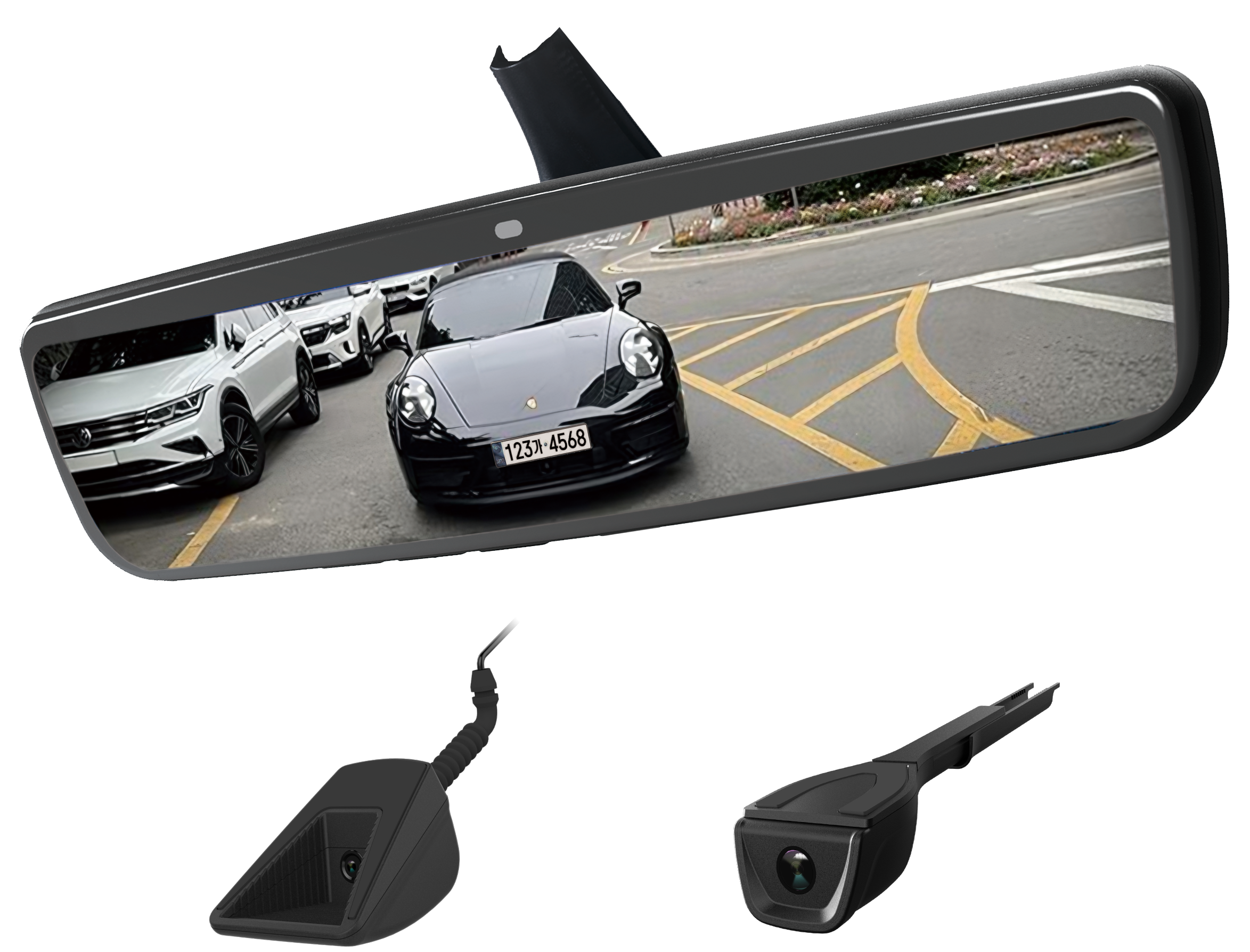

60fps LVDS Digital Rearview Mirror
60fps Mirror + Built-in Garage Remote
60fps Mirror + 2-Channel Full HD Dashcam
60fps + 2-Channel HD Dashcam + Garage Remote
* Premium vehicles (Land Rover, Porsche, Bentley, Ferrari, Lamborghini) are +$200. Free shipping on 2+ units.

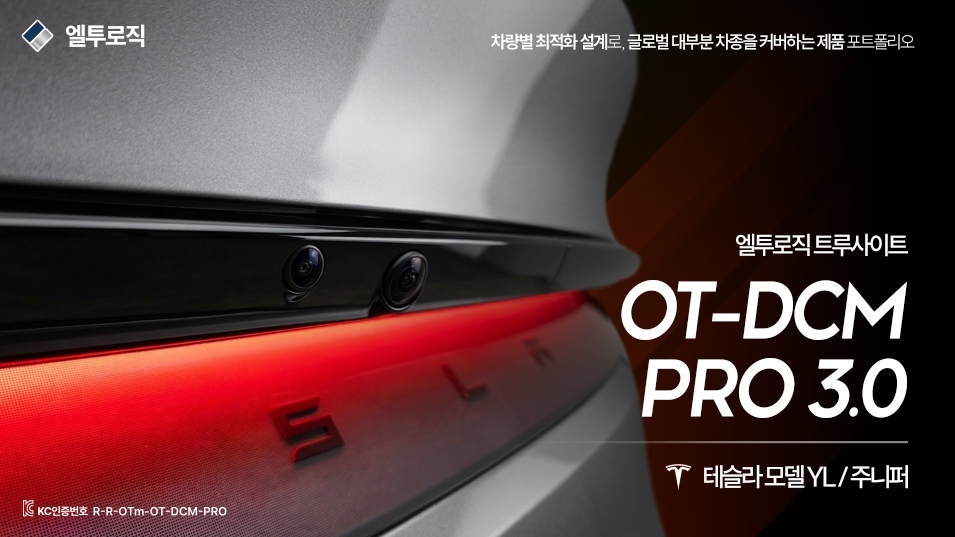

Most digital mirrors are universal products. Ours are built for one specific vehicle — yours.
Dimensionally matched to your factory bracket, housing, and LVDS connector. Installs in the exact position your car was designed for — no adapters, no bulk.
The same digital transmission protocol used in factory OEM camera systems. 60 frames per second. Near-zero latency. Smooth, real-time rear vision identical to a glass mirror.
Both OT-DCM and PRO3.0 use Sony IMX automotive image sensors — the same sensor family trusted by OEM manufacturers and security professionals. HDR-capable in all conditions.
NE-D163A SoC runs RTOS + Linux simultaneously. Under 2-second boot. 50ms screen latency. H.265 encoding at 60% better compression than H.264. Automotive-grade computing, not a dashcam chip.
Hardware and firmware designed entirely by L2Logic engineers in Seoul. Not a rebrand. Not a white-label. We build the circuit, write the firmware, and machine the bracket tooling for each vehicle.
We stand behind our engineering. Sony IMX sensor defect rate: 0.001%. Samsung DDR4: 0.03%. 72 automotive qualification tests passed. Quality this precise doesn't break — and if it does, we cover it.
Two models. Both precision-engineered — with different priorities. The OT-DCM prioritizes maximum display performance. The PRO3.0 optimizes for dashcam integration with a larger LVDS panel.
Both models feature IP69K waterproof camera ratings and 1920×384 native resolution. Both start displaying in under 2 seconds after ACC-ON.

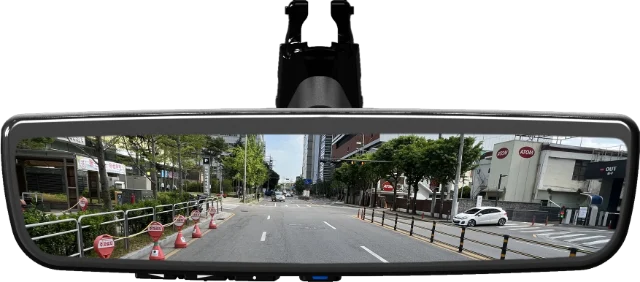

| OT-DCM Display | 9.2" TFT LCD IPS |
| OT-DCM Brightness | 5,000 cd/m² |
| OT-DCM Boot | ≤ 1 second |
| PRO3.0 Display | 9.6" LVDS |
| PRO3.0 Brightness | 3,000 cd/m² |
| PRO3.0 Contrast | 1000:1 |
| Resolution (both) | 1920 × 384 |
| Camera IP (both) | IP69K |
Simulated display representation
Every TrueSight system includes an IP69K waterproof Sony IMX rear camera. The PRO3.0 adds a dedicated Sony IMX front camera for 2-channel simultaneous recording — both using the same sensor family trusted by automotive manufacturers globally.
| Rear Sensor (both) | Sony IMX · IP69K |
| PRO3.0 Rear | IMX462 · 1080P@60fps |
| PRO3.0 Rear FOV | H:70° / V:38° |
| PRO3.0 Front | IMX307 · 1080P@30fps |
| PRO3.0 Front FOV | H:110° / V:55° |
| Sensor defect rate | 0.001% |
Front camera cable slot is extended to prevent interference with Toyota Safety Sense and Lexus Safety Systems. Rear camera base is 2–3mm undersized on one side to eliminate heat-film cutting tolerance errors.
PRO3.0 Recording System
Two models. One engineering DNA. OT-DCM targets maximum display brightness for drivers who want the clearest mirror view. OT-DCM PRO3.0 adds two exclusive upgrades for drivers who want an integrated dashcam and a cleaner front face.
| OT-DCM | PRO3.0 | |
|---|---|---|
| Display | 9.2" TFT LCD IPS | 9.6" LVDS |
| Resolution | 1920 × 384 | 1920 × 384 |
| Brightness | 5,000 cd/m² | 3,000 cd/m² |
| Camera Waterproof | IP69K | IP69K |
| Boot | ≤ 1 second | Under 2 seconds |
| Design | — | Bezel-less |
| Cameras Included | 1 (Rear) | 2 (Front + Rear) |
Not product renders. Actual capture from TrueSight mirrors in operation — so you can judge display quality, frame rate, and on-screen interface for yourself.
Real driving footage captured on TrueSight.
On-screen menu, settings, and UI structure.
L2Logic was founded by engineers who built automotive electronics for OEM supply chains. TrueSight is what happens when those engineers stop building for other brands and start building for drivers.
Every TrueSight mirror is designed in-house in Seoul — from the LVDS circuit to the bracket tooling — specifically for the vehicle it fits. We write the firmware. We machine the brackets. We run the tests.
When you buy TrueSight, you're buying direct from the engineering team that built it.
Anti-Glare Mirror Comprising Liquid Crystal Layer — KIPO registered June 2025. Proprietary LC glass technology developed in-house.
Manufactured and quality-controlled at our Seoul facility. Every unit tested before shipping.
Manufacturing defects covered from delivery date. DOA reporting within 14 days. Engineering team handles all support.
| Feature | TrueSight OT-DCM | Generic Digital Mirror |
|---|---|---|
| Signal Type | 60fps LVDS digital | Analog or low-fps |
| Vehicle Fitment | Vehicle-specific OEM | Universal clip-on |
| Display Brightness | Up to 5,000 cd/m² | 300–800 cd/m² typical |
| Boot Time | ≤ 1 second | 3–8 seconds |
| Screen Latency | ≤ 55ms | 100–300ms |
| Camera Waterproofing | IP69K | Unspecified |
| Camera Sensor | Sony IMX automotive | Generic consumer CMOS |
| Garage Door Opener | Integrated (GR models) | Eliminates factory button |
| 2-Channel Dashcam | Built-in (PRO3.0 series) | Not integrated |
| Warranty | 3 Years | 1 year or less |
| Tech Support | Engineering team | Generic CS |
TrueSight mirrors are vehicle-specific — designed for selected models only. Use the "Find My Vehicle" tool above to confirm fitment before purchasing. Not all vehicles are currently supported; we're continuously expanding compatibility.
Yes. TrueSight installs in the exact same position as your factory mirror, using the same mounting bracket and connector positions. The result is OEM-level appearance — it looks like it came with the car.
No. The TrueSight OT-DCM PRO 3.0 is a complete vehicle-specific camera kit — the mirror, front camera, and rear camera are designed around a matched serializer / deserializer LVDS pair and must be used together. It is not compatible with OEM factory digital mirror camera systems, and it does not reuse your vehicle's original backup camera signal. The kit includes everything needed for fitment; professional installation is recommended to route the included harnesses cleanly.
Vehicle-specific bracket tooling, Sony IMX sensors, IP69K certification, 60fps LVDS architecture, in-house firmware development, 72 automotive qualification tests, and 3-year warranty backing. You're buying precision engineering, not a product.
Both share the same vehicle-specific OEM fit and Sony IMX camera system. OT-DCM focuses on maximum display performance — 5,000 cd/m² brightness, 9.2" IPS panel, under 1-second boot. PRO3.0 adds a complete 2-channel Sony HD dashcam recording system with H.265 compression and a larger 9.6" LVDS panel.
Yes. Standard reflective mirror functionality is maintained when the display is off. You never lose your rearview.
Strongly recommended. TrueSight requires LVDS wiring connections and vehicle-specific harness work. Professional installation by an automotive electronics technician ensures correct fitment and long-term reliability. Experienced DIY installers may be capable, but improper installation voids the warranty.
Yes — worldwide. Standard shipping via EMS ($33 for 1 unit, +$25 per additional). Express via DHL ($90 for 1 unit, +$55 per additional, US-equivalent pricing zones). Free shipping on 2+ units in one order.
Products ship from Seoul, South Korea. Import duties, VAT, and customs fees may apply depending on your destination country and are the buyer's responsibility. L2Logic operates under Korean corporate tax law and does not collect US sales tax.
Manufacturing defects under normal use and proper installation, from the date of delivery. DOA claims must be reported within 14 calendar days. The warranty does not cover improper installation, unauthorized modification, or physical damage. Return shipping is the customer's responsibility.
Yes. L2Logic Co., Ltd. (주식회사 엘투로직) is a Korea-based automotive electronics developer with in-house hardware and firmware engineering, Korean Patent No. 10-2824933, 72 automotive-grade qualification tests passed, and global installer partnerships. Products have been professionally installed across multiple countries.
Yes — firmware updates for applicable models are delivered via SD card when released. Because we develop all firmware in-house, we can issue targeted updates for specific vehicle integrations and add new features over time.
Email us at support@digitalrearviewmirror.com for technical and compatibility questions. For sales and B2B inquiries: sales@digitalrearviewmirror.com. We typically respond within 24 hours.
Professional installation by a qualified automotive electronics technician is strongly recommended for correct fitment and warranty coverage.
Engineers answer. Not scripts. Our in-house development team handles all technical support directly.
L2Logic's 3-Year Limited Warranty covers manufacturing defects under normal use and proper installation.
Built specifically for your car. IP69K. Up to 5,000 cd/m². 3-year warranty. Ships worldwide.
